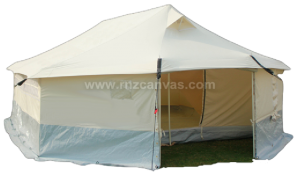

Round Family Tents with white stripes
Dimensions Useable Floor Area 26 m2 (App)
Length x Width -Outer Tent including vestibules: 6.50 x 4.00 m
Length x Width -Inner Tent: 3.95 x 3.80 m
Central height – Outer Tent: 2.20 m
Central height – Inner Tent : 2.10 m
Wall height – Outer Tent : 1.25 m
Wall height – Inner Tent : 1.15 m
Length x Width of door – Outer tent front: 1.3 x 1.4 m
Length x Width of door – Outer tent back: 1.00 x 1.55 m
Length x Width of door – Inner Tent : 1.7 x 1.0 m
No of vestibules: 2 front & rear
Length x Width -Outer Tent vestibules: 1.3 x 4.0 m
Make : Double Tent Single Fold
Material : Outer tent: 350 g/m2 poly cotton canvas,water proof,Anti microbial proof,Anti fungal proof and ultraviolet rays proof.
Outer tent wall: 200 g/m2 poly cotton canvas,water proof,Anti microbial proof,Anti fungal proof and ultraviolet rays proof.
Inner tent: 130 g/m2 poly cotton canvas,water proof,Anti microbial proof and Anti fungal proof.
Colour : Outer Shell & Outer tent Wall: Natural
Inner Tent : Natural
Mud Flap : Made up of Woven high Density polyethylene black fibers,Fiber laminated on both side with low density polyethylene coated fabric of 180 g/m2. Size: 50 cm as wall & 20 cm as Mudflap.
Windows 2, full length windows, one on each wall – Windows are made up of LLIN Treated mosquito netting (WHO APPROVED)with easily operable flap covers
Chimney One chimney opening, size 25 cm x 45 cm, on the vestibule
Ventilators 2, one on top of each vestibule
Ground Sheet Sewed in bathtub ground sheet made up of Woven high Density polyethylene black fibers,Fiber laminated on both side with low density polyethylene coated fabric of 180 g/m2.
The integrated groundsheet is made up of PE woven fabric .The seam that attaches the groundsheet to the sides of Inner tent is 200 mm above the floor.To avoid water infiltration no stitching seams are allowed in the ground sheet.All seems to be welded by heat sealing and have a 25 mm overlap.
Frame Made of painted steel poles: 2 Standing of 25 mm. dia. 1 standing + 1 Ridge poles of 31 mm dia 6 Wall & 4 canopy poles of 19 mm dia
Accessories All require tools and accessories for ready use.1 hammer of 1 kg,5 pegs of 350 MM long,made of angled iron 25 x 25 mm,3 mm thick,with a iron rod of 50 mm long and 6 mm diameter welded on the top,4 pegs of 300 mm long after bending,made of iron rebar 10 mm diameter ,26 pegs of 270 mm long ,made of iron bar 6 mm diameter and 1 setup instruction sheet in English language plus step by step photos printed on durable fabric and stitched to outside of accessory bag
Packing Each tent packed with all accessories in one rolled bale and forms one bundle. Outer / Inner Tent and groundsheet folded and rolled with all accessories And poles, where accessories were packed in separate HDPE bag and poles were separately packed in HDPE BAG inside the bundle. Each bundle shall then be polyethylene-lined wrapped and then packed in Woven HDPE carrying bag.
weight 65 kg
